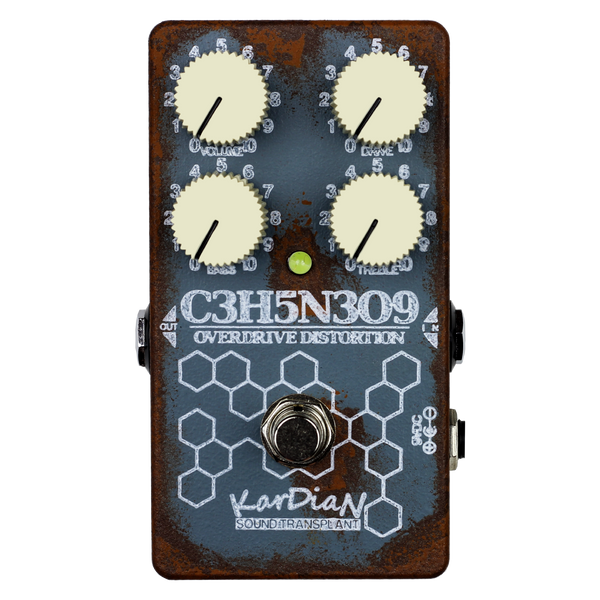

KarDiaN C3H5N3O9 Nitroglycerin
Overdrive
KarDiaN C3H5N3O9 Nitroglycerin is a pedal in the overdrive category.
Board placement uses the catalog’s 72 × 121 × 55 mm dimensions; leave additional cable clearance around controls and jacks.
The catalog lists 9 V and 5 mA current draw; check polarity and the exact model’s specifications before connecting power.
- Dimensions
- 72 × 121 × 55 mm
- DC voltage
- 9 V DC
- Current draw
- 5 mA
- Polarity
- Center negative
Some description details need further verification.
