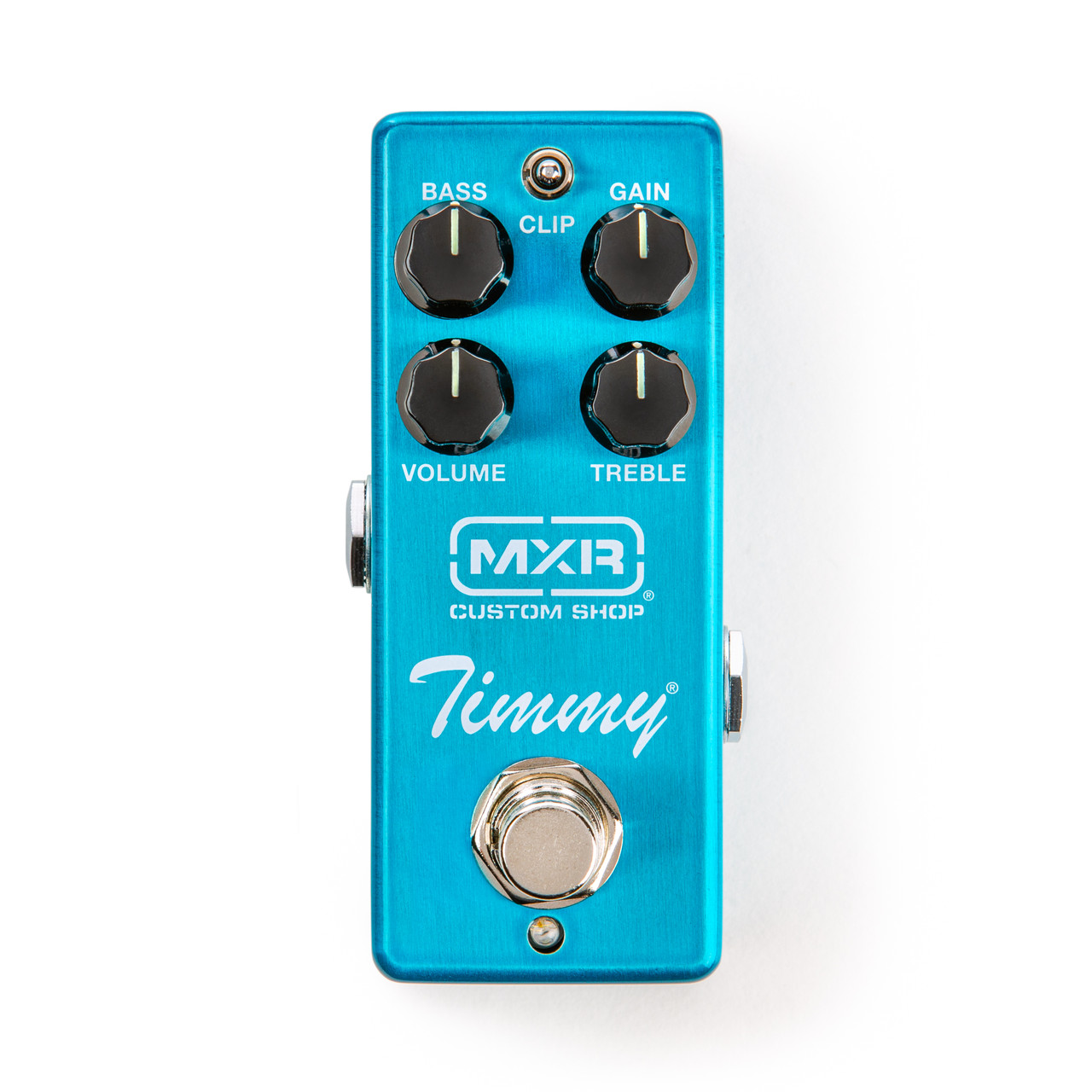

MXR Timmy Overdrive
Overdrive
MXR Timmy Overdrive is a pedal in the overdrive category.
Board placement uses the catalog’s 53 × 92 × 55 mm dimensions; leave additional cable clearance around controls and jacks.
The catalog lists 9 V and 2.2 mA current draw; check polarity and the exact model’s specifications before connecting power.
- Dimensions
- 53 × 92 × 55 mm
- DC voltage
- 9 V DC
- Current draw
- 2.2 mA
- Polarity
- Center negative
Power and current follow the official manual. The official enclosure is 45 × 92 × 55 mm; the board width is conservatively set to 53 mm to allow for side-jack housings.
Some description details need further verification.
